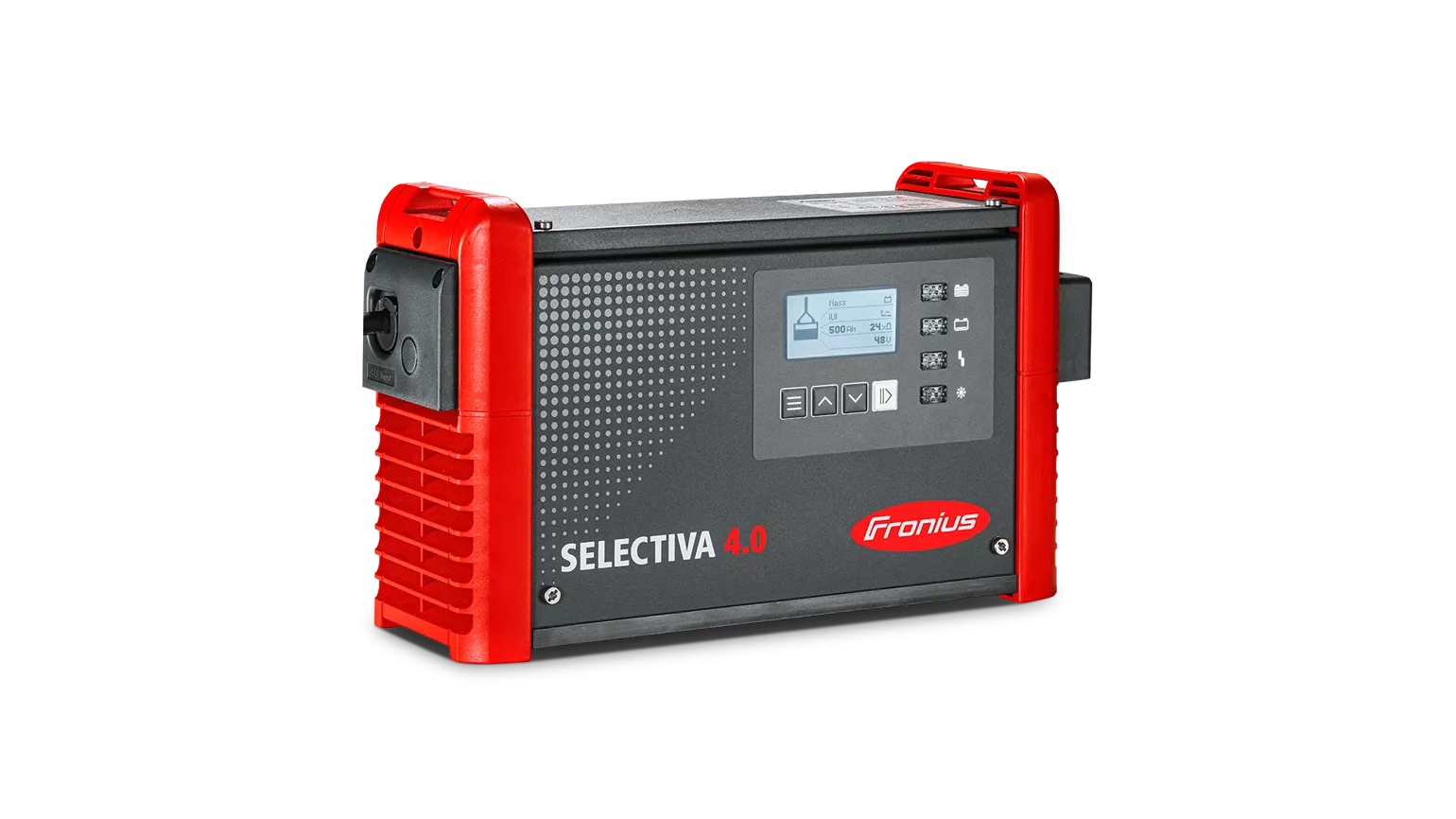

Battery chargers 4.0 for 48 V / 36 V batteries

One battery charger for every battery

The battery chargers from the Selectiva product family offer flexible charging of batteries with different voltages and capacities. Among the benefits for you are the simple and standardised operation and amount of space needed as well as low operating costs.

Please choose your desired product.

Product details

Technical Data

General Data

Mains Frequency	50 Hz
Length	341 mm
Width	110 mm
Height	198 mm
Weight	4,5 kg
Weight	4,5 kg
Weight incl. packaging	5,9 kg
Interference emission class	B

Technical Data

Mains frequency maximum	60 Hz
Mains fuse	16 A
Residual current Circuit Breaker	Typ A
Minimum Mains Lead Cross Section	1,5 mm²
Nominal output voltage	48 V
Charging current / output current nominal	20 A
Maximum Relative Humidity	85%
Max. altitude	2000 m
Protection class	IP21

Functions

Power Charging

With the Power Charging option it is possible to increase a low lead battery level with help of rapid or opportunity charging within a short amount of time.

Cold Logistics

The Cold Logistics option increases the performance of the cooled battery by inreasing the temperature. The characteristic is adapted in such a way that the battery is fed with a higher amount of energy in order to warm it.

Highlights

Flexible and adaptive

We are aware that your everyday business is often very demanding. That is why our Selectiva 4.0 chargers are modularly designed, lightweight and easy to move to the required location, making charging the most common lead acid, lead crystal and CSM batteries possible. Your advantage? A charger that adapts flexibly to your requirements and the different tensions and capacities of your batteries.

Convincing quality

Fronius products have an exceptionally long life expectancy and are produced by the highest quality standards. This not only impresses us, but also our customers for more than 75 years. Our intelligent and future-proof products are also offered with an impressive five year product guarantee.
