FOH 8-40 / 10-76 / 20-114 / 40-168 welding heads

Mechanised orbital welding

WELDING PROCESS: TIG
Open welding heads for the mechanised TIG orbital welding of pipe joints (external diameter 8 - 168 mm) made of steel, stainless steel, titanium, nickel-based alloys, aluminium and other materials with and without the use of filler wire.

Contact

Would you like to find out more about the product?

Product details

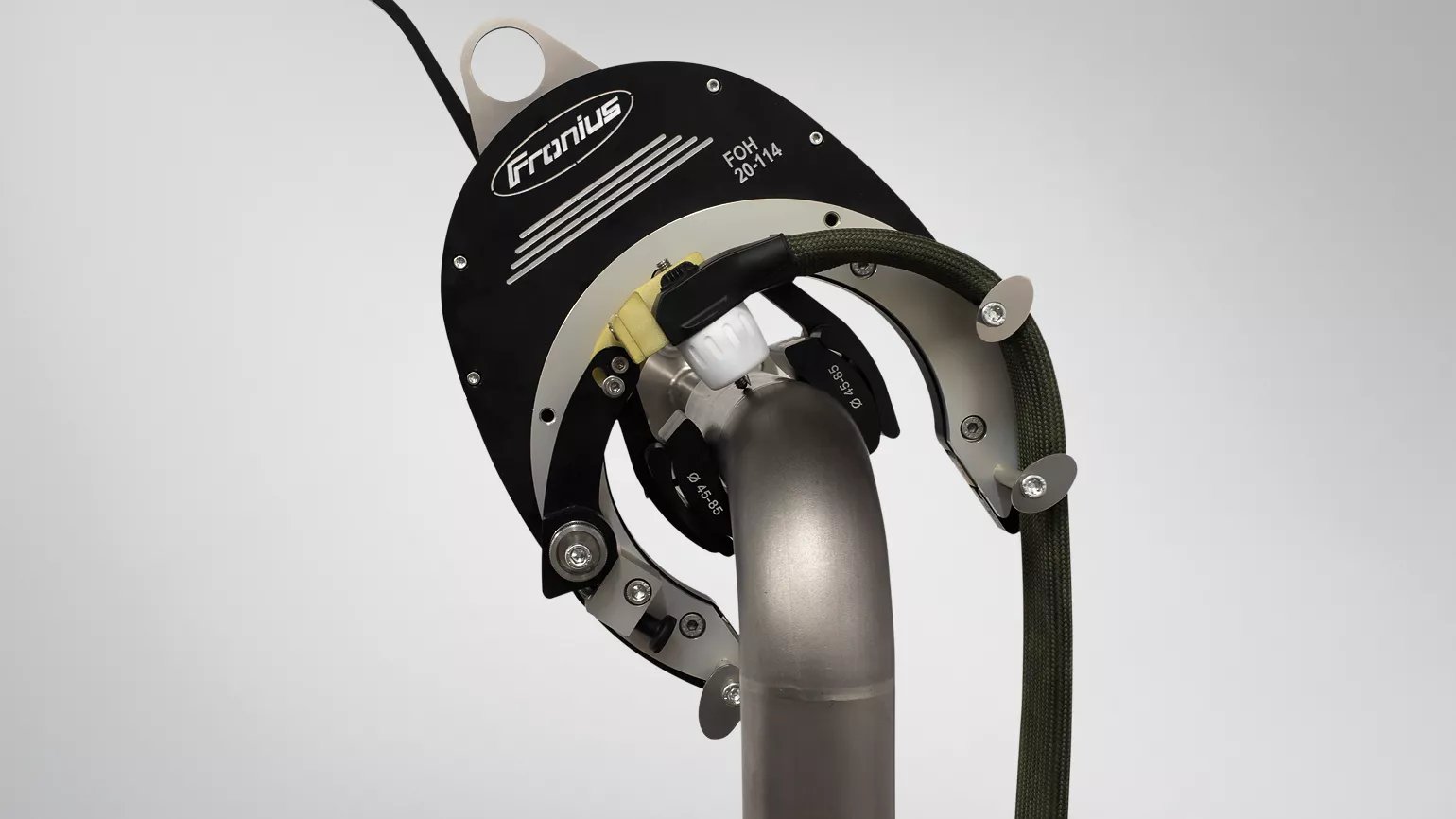

open orbital weldhead FOH 20-114 with filler wire
Open welding head with component

Spot-on versatility.

  • FOH welding head with up to two sets of reducing jaws, depending on the type of welding head
  • Integrated servo motor
  • Automatic movement to the opening position
  • Freely definable start position
  • Automatic switch-off of the motor current in the event of overloading
  • Continuously adjustable clamping/centring system for quick adjustment to the tube diameter
  • Mechanical tube tracking for constant electrode distance
  • Torch mounting 0 - 45°, continuously adjustable
  • Manual lateral correction of the electrode
  • Swivelling torch holder with fixing
  • Plug-in control line (6 m)
  • Orbital welding torch with insulated torch body and high duty cycle
  • Best possible gas shield and low level of temper colouration
  • Welding torch with simple wearing part replacement system
  • Transport case with trolley function
Fronius FPA 3020 System Controller for orbital welding systems
FPA 3020 system controller

Standard equipment.

  • Lightweight, compact design – ideal for portable use
  • Integrated microprocessor control
  • Integrated 200A, single-phase inverter power source
  • Generator-compatible
  • Integrated water cooling with water detector
  • Integrated gas flow detector
  • Intuitive touchscreen control panel with colour graphical process diagram
  • Choice of languages (De/Gb/Fr/It/Es/Pb/Ru/Cz/Tr/Pl)
  • Storing of programs onto USB flash drive
  • Data backup onto USB flash drive
  • Control of welding current, axis of rotation, forming gas and external wirefeeder
  • Measuring and recording of heat input
  • SynergicMode (material, pipe external diameter, wall thickness, gas, etc.)
  • Auto-diagnosis system (error code display)
  • Welding data documentation on USB flash drive
  • USB port for data transfer/recording
  • Integral printer for welding data documentation
  • FRC-FPA 3020 remote control with 10 m cable
  • 1 x 8 GB USB flash drive

Programming welding parameters.

  • 200 programs can be stored and loaded
  • Three tacking programs with up to 20 tacked spots
  • Ten sectors/program with freely definable parameters

FRC-FPA 3020 remote control functions.

  • Program selection
  • Start/stop with slope, immediate end of welding
  • Emergency Stop button
  • Manual positioning of the movement units
  • Manual wire feed and retract
  • “On-the-fly” parameter changes during the welding cycle
  • Shielding gas test button and forming gas on/off

Values displayed during the welding cycle.

  • Welding current (A)
  • Arc voltage (V)
  • Torch position (degrees)
  • Welding speed (cm/min)
FPA 3030 System Controller, orbital welding systems
FPA 3030 system controller

Standard equipment.

  • Mounted on trolley
  • Integrated microprocessor control
  • Generator-compatible
  • Integrated digital gas sensor
  • Easy to program following intuitive operator guidance
  • Remote support via internet connection
  • Colour touchscreen with colour graphical process diagram
  • Choice of languages (De/Gb/Fr/It/Es/Pb/Ru/Cz/Tr/Pl)
  • Control of welding parameters for digital Fronius TIG power sources
  • Control of axis of rotation using encoder
  • Control of wirefeeder and forming gas
  • Welding data recording onto USB flash drive
  • SynergicMode (material, pipe external diameter, wall thickness, gas, etc.)
  • Auto-diagnosis system (error code display)
  • Ethernet and RS232 interface for servicing
  • Storing and loading of programs onto/from USB flash drive
  • Data backup onto USB flash drive
  • Built-in printer prints 40 characters per line
  • FRC-FPA 3030 remote control with 10 m cable
  • 1 x 8 GB USB flash drive

Programming welding parameters.

  • 200 programs can be stored and loaded
  • Three tacking programs with up to 20 tacked spots
  • Ten sectors/program with freely definable parameters

FRC-FPA 3030 remote control functions.

  • Program selection
  • Start/stop with slope, immediate end of welding
  • Emergency Stop button
  • Manual positioning of the movement units
  • Manual wire feed and retract
  • “On-the-fly” parameter changes during the welding cycle
  • Shielding gas test button and forming gas on/off

Values displayed during the welding cycle.

  • Welding current (A)
  • Arc voltage (V)
  • Torch position (degrees)
  • Welding speed (cm/min)
  • Wire speed (cm/min)
  • Heat input (kJ)
Fronius, FPA Xplorer welding software
FPA Xplorer screenshot

Welding data documentation, visualisation, archiving and parameter creation on a PC.

  • View the properties of all managed devices
  • Manage, edit and archive welding programs
  • Overview of managed devices with status indicator
  • AVR (Actual Value Record): visualise, evaluate and archive recorded actual values – via USB flash drive or in real time via the network connection (online version)
  • Load log book data from USB flash drive or by downloading it directly from the control unit via the network connection (online version)
  • Live display of alarm signals (online version)
Fronius KD 4000D wire feed
KD 4000 wirefeeder

Standard equipment.

  • Cold wirefeeder
  • External control of the wire speed via interface
  • Four-roller drive for 0.8 mm wire diameter (trapezoidal groove)
  • Closed wirespool cover for 300 mm/15 kg
  • Hinged/lockable protective cover for motor plate
  • Handle



Fronius mechanized TIG orbital welding, application with open weld head FOH
Pipe welding with open welding head

For FOH welding heads.

  • TTGO F++/ 5 m orbital welding torch (only with FOH 8 - 40)
  • TTWO 2000 F++/ 5 m orbital welding torch
  • Welding torch wearing-part box
  • FCH/FOH 10 m extension hosepack
  • KD 4000 D-11 wirefeeder
  • Two-axis wire adjustment
  • Wirefeed (wire diameters 0.8 - 1.2 mm)
  • Balancer spring return
  • FPA 3020/3030 orbital system controller

For FPA 3020 system controller.

  • Grounding cable, gas hose
  • PickUp trolley with console and toolbox
  • Pressure regulator
  • Open welding heads with/without welding wire
  • Hosepack extension
  • Manual welding torch
  • Printer paper

For FPA 3030 system controller.

  • FPA Xplorer software for offline/online use (data documentation/archiving)
  • Ethernet cable
  • TIG power source, cooling unit, KD supply
  • PickUp trolley
  • Hosepack extension
  • Printer paper

For KD 4000 WireFeeder.

  • Connection cable to system controller, 9 m
  • Two-axis wire adjustment with wirefeed for 0.8 mm wire
